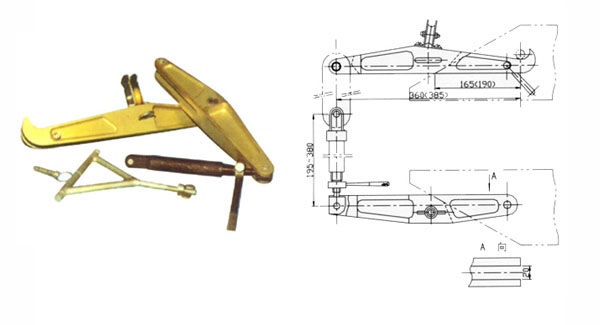

Model: SDK27 (DK-1) SDK36-20

The two main parameters: a workload: 26.5 (KN) (2.7tf), the static test load: 66KN (6 75tf) 3, the screw stroke: 220mm. 4, openings Size: 18mm 5, fixtures self-respect: 4.5kg.

Three purposes: the fixtures for the 110kV and 220kV transmission line, charged to an indirect or potential to replace a string of tension insulator string.

Fourth, the use of supporting tools (optional): 1, 2 drawing board, propping frame, lever, take off pliers.

, Methods of operation: the drawing board before and after the card statement and assembled. They stand in the cross arm, one person holding the back end of the pull plate, a lever to provoke a former card before the card to the front-end for hanging on the ladder associated board and do not live in the U ring arc. After the card is associated panel mounted on the back, having a good screw, and put on care bottle rack, tighten the screw to be a little difficult fixtures, picking spring pin.
